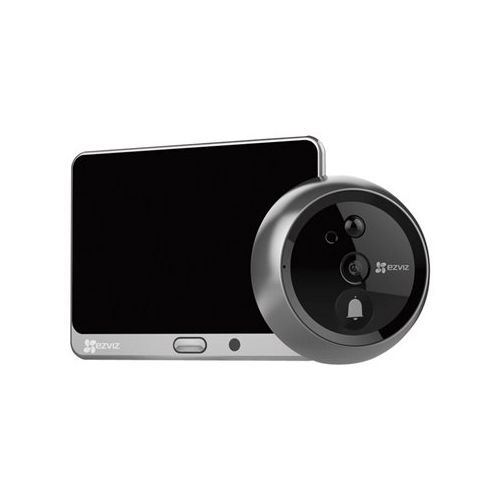

DPI See Who's There On Your Phone and a Smart Color Touch-ScreenTurn a Standard Peephole into a Smart Video Viewer
DPI is a smart, wire-free door viewer with motion detection, enabling you to see and speak to the person at your door. With its HD video and crystal two-way intercom, you will never miss a visitor.
The DP1 replaces your traditional peephole with a smart door viewer. It comes with a 4.3” color touch-screen placed on interior side of the door.
When a visitor presses the bell, the color touch screen will automatically turn on. As you walk up to your front door, you see who is on the other side for touchless convenience.
Instant Alert for 24/7 Protection
Featuring smart motion detection, the DP1 captures images and sends real-time alerts to you when a visitor is at the door.
Video in Real-Time
Featuring with built-in chimes, the DP1 alerts you and provides real-time video of your visitors via indoor screen and your smartphones as well.
HD Video with Wide-Angle View
With its HD 720p commercial-grade wide-angle lens, the DPI gives you a wider view outside the door.
Crystal Clear Night Vision
Up to 3 meters of night vision, the DP1 delivers crystal and clear images even at night. Switches between day and night modes automatically.
High Quality, Durable Body
Its strong and durable Zinc Alloy construction means the DP1 can withstand vandalism and prevent unwanted removal.
Long Battery Life
Equipped with a built-in 4600mAh rechargeable lithium battery, the DP1 delivers long battery life with minimal power consumption.
| System |
|---|
| Processor | High-Performance Embedded
SOC Processor |
|---|
| Operation System | Embedded RTOS |
|---|
| Installation |
|---|
| Supportive Hole Diameter | 16.5-50 mm |
|---|
| Supportive Door Thickness | 35-110 mm |
|---|
| Camera |
|---|
| Sensor | 1/3" Progressive Scan
CMOS |
|---|
| Lens | [email protected], 124° (horizontal), 70° (vertical) |
|---|
| Day/Night Switch | ICR infrared filter |
|---|
| IR Distance | 3 meters/10ft |
|---|
| Resolution | 720p |
|---|
| PIR Sensor |
|---|
| Angle | 100° |
|---|
| Distance | 2.43meters/ 8ft |
|---|
| Sensitivity | Adjustable |
|---|
| Screen |
|---|
| Size | 4.3" |
|---|
| Touch | Capacitive |
|---|
| Interface/Button |
|---|
| Storage | MicroSD Card (Max.
128G) |
|---|
| Audio Input | Built-in high sensitive
microphone |
|---|
| Audio Output | Built-in high power
speaker |
|---|
| Button | Doorbell button, power
button, screen wake-up button |
|---|
| Network Function |
|---|
| Smart Alert | PIR motion detection |
|---|
| Video Intercom | Support |
|---|
| Protocol | EZVIZ proprietary
protocol |
|---|
| General Function | Image encryption |
|---|
| Wi-Fi |
|---|
| Standard | IEEE802.11b, 802.11g,
802.11n |
|---|
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
|---|
| Channel Bandwidth | 20MHz |
|---|
| Security | 64/128-bit WEP, WPA/WPA2,
WPA-PSK/WPA2-PSK, WPS |
|---|
| Speed | 11b: 11Mbps,11g :54Mbps,11n
:150Mbps |
|---|
| Minimum Network
Requirement | 2Mbps |
|---|
| General |
|---|
| Power Supply | DC5V±10% |
|---|
| Power Consumption | Max. 2.25W |
|---|
| Product Dimensions | Panel + Base: 115.5mm x
85.5mm x 24.5mm Camera: 71mm x 71mm x 48.3mm |
|---|
| Packaging Dimensions | 177mm x 119 mm x
95.5mm |
|---|
| Weight (g) | 372g |
|---|
| Operating Conditions | -10ºC ~ 45ºC, Humidity 95%
or less (no condensation) |
|---|
