16/07
|
Compro IP90P 2-Megapixel Day & Night Cube Network Camera - 1/3" Progressive Scan CMOS, H.264, 2-Way Audio, MicroSD, Video Out, Cell Phone Monitoring, Built-In IR LEDs, Built-In Microphone - Black

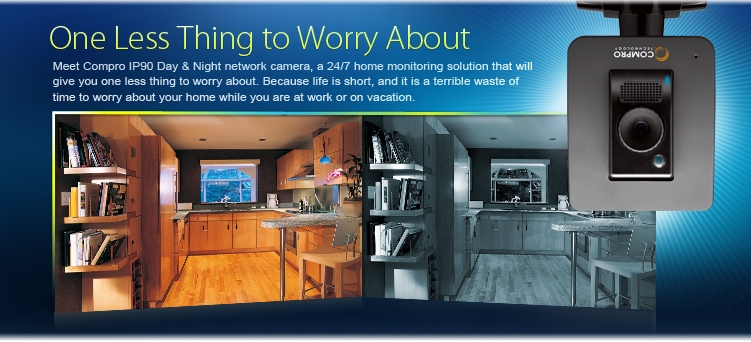

Compro IP90 Day/Night network camera with its clear and sharp video quality can help put your mind at ease. Compro IP90 is endowed with a slew of professional surveillance features, including superb night vision, motion detection, alarm and sensor control, bi-directional audio, etc., all of which make the camera an ideal choice for securing homes, offices, shops, or restaurants.
Features Highlights
Wide Coverage with 2 Megapixel Resolution
The 2 megapixel/HD resolution the camera offers lets you view details and identify people and objects at least four times better than on a conventional CCTV camera. The maximum 1600 by 1200 resolution allows you to capture video from a wide area, and effectively reduces the number of cameras required in a surveillance network.
Day & Night Functionality with Built-in IR LEDs
The camera is equipped with 6 IR LEDs and an ambient light sensor that detects environmental lighting conditions. When low-light conditions are detected, the built-in IR LEDs are automatically switched on to provide additional infrared light that helps deliver clear night-time image.
Mechanical IR-Cut Filter
A built-in mechanical IR-cut filter placed in front of the camera's image sensor can filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the camera's light sensor detects low-light conditions, IR-cut filter can be automatically removed to allow infrared light to reach the image sensor, thus achieving better low-light sensitivity.
Infrared-Corrected Lens
Infrared light and visible light have different wavelength and therefore focus at a different point after passing through an ordinary lens, resulting in out-of-focus image. This camera has an IR-corrected lens which can correct the focal point difference and make both infrared light and visible light focus on the same point. As a result, the camera is able to deliver clear, sharp images in various lighting environments.
ONVIF Support
ONVIF support makes the camera interoperable with all sorts of ONVIF-conformant IP security products, such as an ONVIF-conformant recording system. ONVIF support also means users can use equipment from different manufacturers to build a surveillance system that best meets their needs and preferences.
Plug-n-Play Functionality
Unlike other network cameras, installing this camera does not require any networking expertise. Nor is any sort of router configuration required - simply plug in the cables, install the camera software, and then your Compro camera is ready to be viewed and shared on the Internet.
Composite Video Output
The composite video output allows users to view live camera video on a large TV screen, rather than a small computer monitor.
microSDHC Card Slot
The built-in microSDHC card slot allows the storage of event snapshots and event recordings to the memory card. The stored data can be accessed from a remote viewing PC. The camera also can automatically take snapshots or record video when it detects unusual events in the monitored area.
Two-way Audio Communication
The camera is capable of providing full-duplex and bi-directional audio communication through a built-in microphone, speaker and audio in/out port. The audio communication feature allows you to eavesdrop on the monitored area or broadcast your voice to intruders.
Support for Alarms and Sensors
The camera's integrated digital input and output ports enable it to connect with external sensors or alarms. The camera can record video or take snapshots when external sensors are triggered, or when events are detected, automatically trigger alarms or alerts. IP90 additionally integrates a RS-485 port for controlling Pan/Tilt system.
Video Motion Detection and Audio Detection
Provided with three individually configurable motion detection zones, the camera can record video or trigger alarms or alerts when motion is detected in user-specified areas of the camera image. Also, the camera's built-in microphone enables it to hear what the video cannot see and to trigger the audio detection alarm when sounds like screams, glass breaking, etc., are detected.
SMS & Email Event Notification
The SMS & Email event notification feature enables the camera to send an alert message to specified recipients when it detects unusual events. The SMS notification service does not impose any monthly subscription fees, and the Email notification service supports popular webmail platforms.
Applications
Specifications:
| CAMERA |
| Image Sensor |
1/3" progressive scan CMOS 2 megapixel |
| Lens |
Focal Length: 4.0 mm
Max Aperture Ratio: F1.5
Fixed iris, IR-corrected, adjustable focus |
| Zoom |
10x digital zoom |
| Angle of View |
60 horizontal |
| Focusing Range |
0.5 m ~ INF |
| Min. Illumination |
IR Mode: 0 lux with built-in IR LEDs on (6 LEDs in total; effective distance up to 8m)
Color Mode: 1.0 lux
|
| Shutter Time |
1/5 ~ 1/16000 sec. |
| VIDEO |
| Video Compression |
H.264 ( MPEG-4 Part 10)
Motion JPEG
MPEG-4 Part 2
|
| Resolution |
160 x 120, 320 x 240, 640 x 480, 1280 x 720, 1280 x 1024, 1600x 1200 |
| Frame Rate |
Up to 30 FPS at 1280 x 720 (720P)
Up to 15 FPS at 1600 x 1200 (UXGA) |
| Video Streaming |
Dual video streaming, H.264 or MJPEG/MPEG-4 |
| Image Settings |
Adjustable image size and quality
AGC, AWB, AES
Configurable brightness, saturation and sharpness |
| AUDIO |
| Audio Communi- cation |
Two-way audio with built-in MIC (S/N ratio 58 dB, 50-10000hz ) and speaker (660mv) |
| Audio compression |
G.711 PCM 64Kbit/sec |
| Audio input / output |
MIC input / Audio out |
| NETWORK |
| Security |
User ID / Password protection |
| Supported Protocols |
TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DDNS, DynDNS, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4 |
| FIRMWARE |
| Firmware |
Support UPnP
Support online firmware update |
| SOFTWARE |
| ComproView |
Multi-channel management (32-channels)
Fast and intuitive camera setup
Search and playback recordings by event types
Scheduled and event-based management
Smart motion and audio detection
|
| WEB BROWSER |
| Internet Explorer (ActiveX) |
Remotely view and configure camera on Internet Explorer
Record video and capture snapshots on PC; download recordings from microSD card
Alarm and event management: FTP, I/O alarm, server notification, SMS/Email alert
|
| Supported Devices |
PC, laptop, tablet, nettop, MID with IE8
iPhone/iPad, BlackBerry, Android, WM, PDA, or cell phones with web browser (MJPEG mode)
|
| MOBILE PHONE |
| Smartphone App |
View H.264/MPEG-4 video on iPhone/Android phone |
| MJPEG Mode |
View live image on mobile web browser |
| 3GPP Mode |
View live video on 3G cell phone (3GPP Streaming) |
| GENERAL |
| Operating Condition |
5 C ~ 40 C |
| Power Supply |
IP90: DC 5V/2A
IP90P: DC 5V/2A or PoE (IEEE 802.3af Class 3) |
| System Requirements |
Computer with 1.7GHz processor and 512 MB memory or above
Supported Operating Systems: Windows XP SP3, Vista SP1, Windows 7, Mac OS X 10.6 (viewing only)
|
| Dimensions |
84 x 124.5 x 91.5 mm (including bracket) |
|
|
|
|
16/07
|
Compro IP550P 2-Megapixel HD Day & Night PTZ Network Camera - 1/3" Progressive Scan CMOS Sensor, H.264, 2-Way Audio, MicroSD, Pan/Tilt, Cell Phone Monitoring, Built-In Microphone - White/Black IP550P

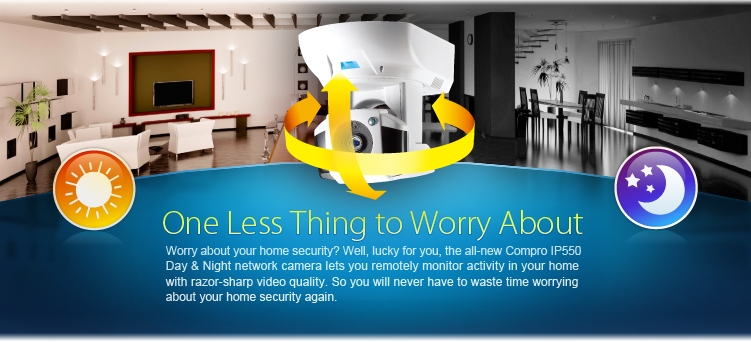

Overview
Compro IP550 series Day/Night network cameras will give you one less thing to worry about when you are on vacation - your home security. The camera's 2-megapixel resolution lets you monitor your home in razor-sharp detail. A 340-degree pan and 100-degree tilt mechanical design coupled with advanced IR technology lets you monitor and follow people or objects in your home or office at all hours of the day and night.
Feature Highlights
Wide Coverage with 2 Megapixel Resolution
The 2 megapixel/HD resolution the camera offers lets you view details and identify people and objects at least four times better than on a conventional CCTV camera. The maximum 1600 by 1200 resolution allows you to capture video from a wide area, and effectively reduces the number of cameras required in a surveillance network.
Day & Night Functionality with Built-in IR LEDs
The camera is equipped with 12 IR LEDs and an ambient light sensor that detects environmental lighting conditions. When low-light conditions are detected, the built-in IR LEDs are automatically switched on to provide additional infrared light that helps deliver clear night-time image.
Mechanical IR-Cut Filter
A built-in mechanical IR-cut filter placed in front of the camera's image sensor can filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the camera's light sensor detects low-light conditions, IR-cut filter can be automatically removed to allow infrared light to reach the image sensor, thus achieving better low-light sensitivity.
Motorized Pan / Tilt
The camera is able to provide flexible viewing angle thanks to its advanced 340-degree pan and 100-degree tilt mechanical design. And its maximum panning speed of 90 degrees per second is on par with that of a professional-grade PTZ camera on the market.
ONVIF Support
ONVIF support makes the camera interoperable with all sorts of ONVIF-conformant IP security products, such as an ONVIF-conformant recording system. ONVIF support also means users can use equipment from different manufacturers to build a surveillance system that best meets their needs and preferences.
Plug-n-Play Functionality
Unlike other network cameras, installing this Compro camera does not require any networking expertise. Nor is any sort of router configuration required - simply plug in the cables, install the camera software, and then your Compro camera is ready to be viewed and shared on the Internet.
microSDHC Card Slot
The built-in microSDHC card slot allows the storage of event snapshots and event recordings to the memory card. The stored data can be accessed from a remote viewing PC. The camera also can automatically take snapshots or record video when it detects unusual events in the monitored area.
Two-way Audio Communication
The camera is capable of providing full-duplex and bi-directional audio communication through a built-in microphone and audio in/out port. The audio communication feature allows you to eavesdrop on the monitored area or broadcast your voice to intruders.
Support for Alarms and Sensors
Through an optional digital I/O expansion box, the camera offers 3 sensor input ports and 3 alarm output ports. With them, the camera can initiate video recording, take snapshots, etc., when sensors are triggered. Or when events are detected, activate alarms or take other response actions.
Video Motion Detection and Audio Detection
Provided with three individually configurable motion detection zones, the camera can record video or trigger alarms or alerts when motion is detected in user-specified areas of the camera image. Also, the camera's built-in microphone enables it to hear what the video cannot see and to trigger the audio detection alarm when sounds like screams, glass breaking, etc., are detected.
Friendly Wall Mount Design
This PTZ camera comes with a wall mount plate friendly designed to allow for the fast and easy mounting and dismounting of the camera. Once secured on the wall or ceiling, the camera can then be easily configured via the setup wizard or remote viewer to rotate its image by 180°.
Applications
Specifications:
| VIDEO |
| Sensor |
1/3" progressive scan 2MP CMOS sensor |
| Video Standard |
Tri-codec M-JPEG, MPEG-4, H.264; dual streams supported |
| Data Rate |
Streaming 1 and 2 multi-level configurable |
| Video Quality |
6 Levels selectable |
| System |
60 / 50 Hz |
| Resolution |
160x120, 320x240, 640x480, 1280x720, 1280x1024, 1600x1200
|
| Frame Rate |
Up to 15 FPS at 1600 x 1200 (UXGA)
Up to 30 FPS at 1280 x 720 (720P) |
| Day & Night Illumination |
12 x IR LED, mechanical ICR controlled, 850 nm, effective 10 m, multi-level configurable
|
| Color |
1.0 Lux minimum |
| Night Mode |
0 Lux when IR on
|
| Channel |
1Ch or 4Ch division, 16 x multi-IP channels per WebVUer; sequential scan supported |
| IMAGING |
| Image Settings |
Brightness, saturation, sharpness, multi-level configurable
|
| White Balance |
5 scenarios selectable |
| Electronic Shutter |
Auto, manual (1/5~1/16000 sec, 16 levels selectable) |
| Flickerless |
60, 50 Hz selectable |
| Low-Light Mode |
Specially enhanced |
| Orientation |
Flip |
| PAN / TILT / ZOOM |
| Panning |
-170 ~ +170, max 90 /sec |
| Tilting |
-10 ~ +90, max 70 /sec |
| Zoom |
10x digital zoom |
| Controlling |
30 preset points, configurable patrol tour |
| AUDIO |
| Compression Format |
G.711 PCM 64Kbit/sec, two-way audio supported |
| Microphone |
1 x built-in, S/N ratio more than 58 dB, sensitivity 50~10,000 Hz |
| Audio Line Input / Output |
1 x in, 1 x out, 3.5 mm phone jack |
| SYSTEM INTEGRATION |
| Sensor In / Alarm Out |
3 x in, 3 x relay out (external & optional) |
| Triggering Event |
Video motion detection (multiple zones and sensitivity levels), audio detection (multi-sensitivity), schedule, I/O |
| Triggering Reaction |
Snapshot, e-mail, FTP, alarm out, ComproView notification |
| SDK |
Available |
| NETWORK |
| Protocols |
TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DDNS, DynDNS, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4
|
| Ethernet |
10/100 Base-T, auto sensing, RJ-45, front LED indicator |
| Wireless |
IEEE 802.11 b/g/n compliant (external & optional adapter) |
| User Group |
3 levels, unlimited users, max 10 users simultaneously |
| Encryption |
WEP, WPA-PSK, WPA2-PSK (when Wireless becomes available) |
| Diagnostics |
Auto connectivity detection, iWizard, iDoctor |
| LOCAL STORAGE |
| Storage |
microSD/SDHC slot, up to 32GB (card not incl)
|
| Format |
JPEG, file name format configurable
|
| Control |
Playback by event types
|
| REMOTE SURVEILLANCE |
| Mobile Surveillance |
M-JPEG or 3GPP streaming over major platforms such as Android, BlackBerry, iPhone, Windows Mobile; exclusive iPhone/Android app |
| Web Surveillance |
WebVUer 16Ch over Internet Explorer, Chrome, Firefox, Safari; features varied |
| Advanced Surveillance |
ComproView 32-CH surveillance system freely bundled |
| GENERAL |
| Unit Configuration |
Reboot, factory default, date/time synchronization |
| User Authentication |
ID, Password |
| Firmware |
HTTP mode, remote update
|
| OSD |
Text or image on-screen overlay |
| Language |
Multi-lingual support |
| System Log |
Listing, cleaning |
| Regulatory |
CE, FCC |
| MECHANICAL |
| Lens Type & Mounting |
f 4.0 mm, F1.5, fixed iris, FOV 60, focus range 0.5 m ~ inf |
| Casing |
PTZ, indoor, white |
| Dimension (HxWxD) |
105 x 125.5 x 128.6 mm |
| ENVIRONMENTAL |
| Operating Temperature |
5~40 C |
| Humidity |
20 ~ 80% RH non-condensing |
| BROWSING REQUIREMENT |
| OS |
Windows XP SP3, Vista SP1, Windows 7, Mac OS X 10.6 (viewing only) |
| Processor |
Intel 1.7 GHz, 512 MB RAM |
| Web Browser |
Microsoft Internet Explorer 6.0 or above, non-IE browsers require third-party plug-in |
|
|
|
|
16/07
|
Compro CS80 2-Megapixel Network Camera - 1/3" Progressive Scan CMOS Sensor, H.264, 10x Zoom, 1-Way Audio, SMS Alert, Motion Detection, Cell Phone Monitoring, Built-in Microphone - White CS80
World's Smallest 2-Megapixel Network Camera
Introducing Compro CS80, the world's smallest 2-megapixel network camera. Compro CS80 is small and easy to use, yet embedded with slew of practical surveillance features, meant for those with a discerning aye.
2MP - Megapixel, H.264, 10x Zoom, SMS Alert, Motion Detection, Cell Phone Monitoring.
The small and ultra-compact Compro CS80 network camera offers vividly clear image quality and a bounty of practical surveillance features. Installation and remote viewing setup on CS80 are as simple as 1-2-3. Multiple H.264 video streams are available to accommodate different monitoring and recording needs. Courtesy of its small size, CS80 is ideal for installation in homes, restaurants, small offices, or any place where space is limited.
Features Highlights
World's Smallest 2MP Network Camera
CS80 is the ultra-compact, name card size network camera designed to fit in any home, office or shop environment. The camera body measures just 3.1 x 2 x 1.5 inches (80 x 52 x 38 mm). Despite being the smallest of its class, this camera delivers clear and vibrant video and offers a slew of surveillance features.
Wide Coverage with 2 Megapixel Resolution
The 2 megapixel/HD resolution the camera offers lets you view details and identify people and objects at least four times better than on a conventional CCTV camera. The maximum 1600 by 1200 resolution allows you to capture video from a wide area, and effectively reduces the number of cameras required in a surveillance network.
H.264 Compression
The camera utilizes the cutting-edge H.264 video compression technology. Compared with the MPEG-4 format, the H.264 technology has higher compression efficiency, which means it can accomplish high image quality while reducing bandwidth requirement and saving storage cost.
10x Digital Zoom
The 10x digital zoom allows users to zoom into details in the live video and to clearly identify suspicious objects or people in the monitored area before engaging with them.
Plug-n-Play Functionality
Unlike other network cameras, installing this camera does not require any networking expertise. Nor is any sort of router setup required - simply plug in the cable, install the camera software, and then your Compro camera is ready to be viewed and shared on the Internet.
Feature-Rich Camera Viewer App
The camera offers an exclusive and feature-rich camera viewer app that allows you to view and manage your Compro cameras on the iPhone or Android phone. The camera mobile app also lets you securely share camera video with your friends and families on your Friends list.
Cross Platform Accessibility
The camera is easily accessible across various platforms and web browsers. So long as the camera is connected to the Internet, you can monitor its live video from PC, Mac, laptop, tablet, mobile phone, or any other Internet-connected device with a built-in web browser.
Friendly Browser Interface
You can view the live video and manage your camera from anywhere and at anytime on your web browser. The camera's browser interface, WebVUer, is so easy to use that there is virtually no learning time required.
Motion Detection
The camera offers three individually configurable motion detection zones. The camera can be configured to automatically take snapshots or send out Email or SMS alert messages in response to any motion detected in user-defined areas.
SMS & Email Event Notification
The SMS & Email event notification feature enables the camera to send an alert message to specified recipients when it detects unusual events. The SMS notification service does not impose any monthly subscription fees, and the Email notification service supports popular webmail platforms.
Built-in Microphone
Gone will be the days when you could not hear what is really going on in your home. This camera's built-in microphone allows it to stream not only live video, but also live audio, to your PC or smartphone. With this camera, you will be empowered to hear what the video cannot see, such as screams, glass breaking, baby's crying, etc.
Easy Mounting Design
Wall mounting and angle adjustment for this camera is easy and effortless. The camera's friendly mounting design allows it to be placed in the most ideal location. Once secured on the wall or ceiling, the camera can then be easily configured via the setup wizard or browser interface to rotate its image by 180°.
Wireless connectivity for the camera requires a Compro USB wireless adapter (sold separately) and a LAN network with 802.11/b/g/n access point. SMS and Email notification requires signing up to a 3rd-party service.
* Features and specifications are subject to change without prior notice.
* Seedonk and Seedonk Messenger are registered trademarks of Seedonk Inc. Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries. Other names and marks are trademarks of their respective owners.
Specifications:
| CAMERA |
| Image Sensor |
1/3" progressive scan 2MP CMOS sensor |
| Lens |
Focal length: 3.75 mm
Max aperture ratio: F3.0
Fixed iris, adjustable focus
|
| Zoom |
10x digital zoom |
| Angle of View |
60 horizontal |
| Focusing Range |
0.5 m ~ INF |
| Minimum Illumination |
1.0 lux
|
| Shutter Time |
1/5 ~ 1/16000 sec. |
| VIDEO |
| Image Settings |
M-JPEG, H.264 (MPEG-4 Part 10)
|
| Resolution & Frame Rate |
160x120, 320x240, 640x480, 1280x720, 1280x1024, 1600x1200 |
| Frame Rate |
Up to 30 FPS at 1280x720 (720P)
Up to 15 FPS at 1600 x 1200 |
| Video Streaming |
Dual streaming supported |
| Image Settings |
Adjustable image size and quality
AGC, AWB, AES
Configurable brightness, contrast, saturation and sharpness |
| AUDIO |
|
Audio Communication
|
One-way audio with built-in microphone |
| Audio Compression |
G.711 PCM 64Kbit/sec |
| NETWORK |
| Protocols |
TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DDNS, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4 |
| Ethernet |
10/100 Base-T, autosensing, RJ-45 |
| FIRMWARE |
| Firmware |
Support UPnP
Support online firmware update |
| WEB BROWSER |
| Internet Explorer (ActiveX) |
Remotely view and configure camera on Internet Explorer
Record video and capture snapshots on PC
Alarm and event management: FTP and SMS/Email alert messaging
|
| Supported Viewing Devices |
PC, laptop, tablet, nettop, MID with IE8
iPhone/iPad, BlackBerry, Android, WM, PDA, or cell phones with web browser (MJPEG mode) |
| MOBILE SURVEILLANCE |
| Smartphone App |
View live video on iPhone/Android phone
|
| MJPEG Mode |
View live image on mobile web browser
|
| 3GPP Mode |
View live video on 3G cell phone (3GPP Streaming)
|
| GENERAL |
| Operating Condition |
5 C ~ 40 C |
| Power Supply |
DC 5V/2A |
| Viewing System Requirements |
Computer with 2.8GHz dual-core processor and 2GB memory or above
Operating system: Windows XP SP3, Vista SP1, Windows 7Internet browser: Internet Explorer 8.0 or later; non-IE browsers require 3rd-party VLC plug-in
|
| Dimensions |
64 x 86.9 x 110 mm (including bracket) |
| Optional Accessory |
USB Wireless N adapter |
|
|
|
|
Previous Page
|
Next Page
|
|
