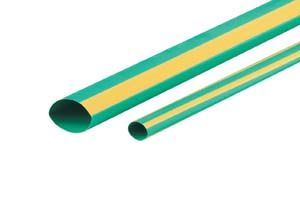

XLP - Heatshrink - Thin Wall - Flame Retarded
XLP tubing is achemically cross-linked tubing that conforms toMIL-1-23053/5 class 3. It will withstand -75 Cto 135 C for normal operating conditions and 200*C for short intervals. Black tubing withstands ultraviolet radiation. Tubing can easily be shrunk with a heat gun or a heat tunnel. All tubings in this range are flame-retarded except clear, which is flammable and conforms to MIL-1-23053/5 class 2.
* Highly flexible.
* Flame retarded.
* Abrasion and impactr esistant.
* For use in all electrical and electronic applications.
XLP tubing has numerous uses in the electrical and associated industries, including insulation, colour coding and mechanical protection.
Compliant Standards: UL224 VW1 File No. E197423
Conformant Standards: MIL-1-23053/5; JIS
Material: Chemically, cross-linked, thermallystabilised flame retarded polyolefin
Continuous operating temp: -75 C to +135 C
Shrinkage temp: > 100 C
Longitudinal shrinkage: < 5%
Tensile strength: 16 MPa
Breakdown voltage: 25 kV/mm wall thickness
Volume resistivity: 1.0 x 1014 ohm cm
Elongation at break point: 400%
Water absorption: 0.15% max
Flammability: Passed ASTM-D-2671
UV stability: Black tubing is stable
Voltage rating: 600V
